Entwodiksyon pwodwi
Aliminyòm Pneumatic Actuator yo itilize pou kontwole tiyo papiyon, tiyo boul, ak machin ak mouvman rotary otomatikman.
Karakteristik konsepsyon
1. Kò valv la ak piston yo difisil anodize.
2. Sòf si vis endikatè a se plastik, tout lòt vis yo se SS304.
3. Gwo ak ti koupl pwodiksyon yo opsyonèl.
Detay rapid

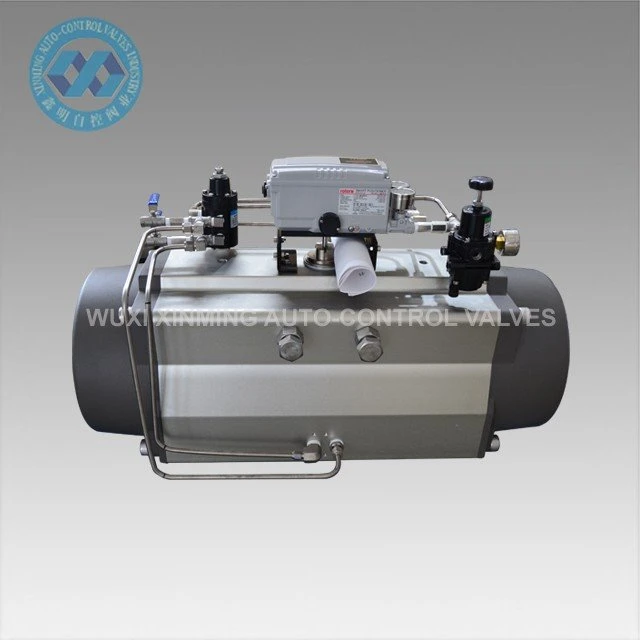

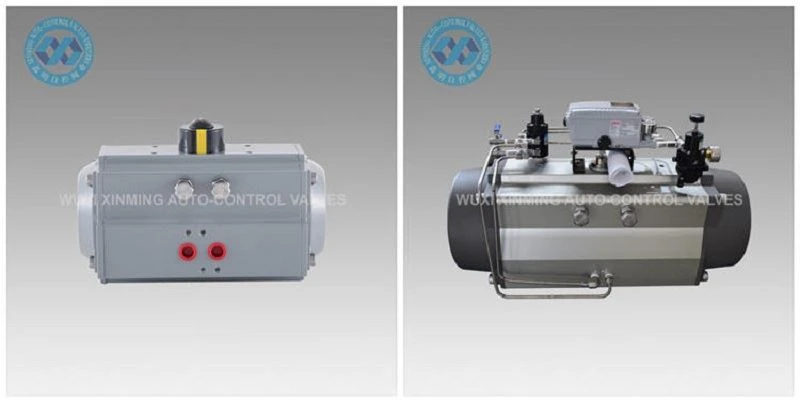

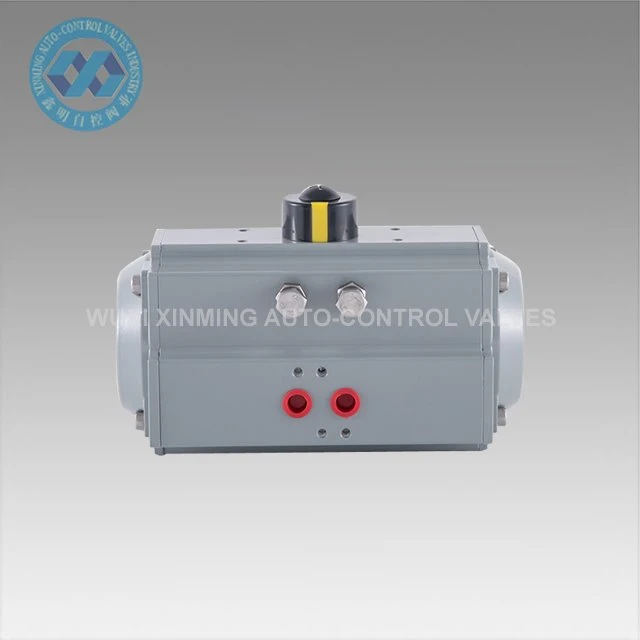

Non pwodwi: Aliminyòm Pneumatic Actuator
Non mak: XM, ak OEM tou aksepte
Gwosè actuator: 32mm-400mm
Ang rotary: 0 degre ~ 90 degre (± 5 degre)
Tanperati travay: -20 degre ~ plis 80 degre (estanda)
-40 degre ~ plis 80 degre (tanperati ki ba)
-15 degre ~150 degre (tanperati wo)
Presyon ekipman pou lè: {{0}}.2 ~ 0.8MPa, 10Mpa max
An tèt koneksyon: VDI/VDE3845 NAMUR
Anba koneksyon: ISO 5211 ak DIN3337
Materyèl: alyaj aliminyòm
Estrikti: etajè ak pignon, doub piston etajè
Tretman sifas kò actuator: difisil anodize ak plen kouch epoksidik (kont korozivite twò grav)
Koulè bouchon fen: nwa gri, nwa, ble fonse, syèl ble, wouj, zoranj, vèt, elatriye.
Sètifikasyon: CE, ATEX, SIL3, ISO9001:2016
Paramèt teknik
XM ALUMINIUM PNEUMATIC ACTUATOR SOTI TAB koupl
Modèl | Antre presyon lè (inite: bar) | |||||
3 | 4 | 5 | 6 | 7 | 8 | |
Koupl pwodiksyon presyon lè a (Nm) | ||||||
XM-DA32 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 |
XM-DA40 | 7.2 | 9.6 | 12.0 | 14.4 | 16.8 | 19.2 |
XM-DA52 | 12.0 | 16.0 | 20.0 | 24.0 | 28.0 | 32.0 |
XM-DA63 | 21.7 | 28.9 | 36.0 | 43.4 | 50.6 | 57.8 |
XM-DA75 | 30.0 | 40.0 | 50.0 | 60.0 | 70.0 | 80.0 |
XM-DA83 | 46.8 | 62.4 | 78.0 | 93.6 | 109.2 | 124.8 |
XM-DA92 | 67.6 | 90.1 | 112.6 | 135.2 | 157.7 | 180.2 |
XM-DA105 | 97.7 | 130.3 | 162.9 | 195.5 | 228.0 | 260.6 |
XM-DA125 | 150.5 | 200.6 | 250.8 | 301.0 | 351.1 | 401.3 |
XM-DA140 | 260.7 | 347.6 | 433.8 | 521.4 | 608.3 | 695.2 |
XM-DA160 | 397.2 | 529.6 | 662.0 | 794.4 | 926.8 | 1059.2 |
XM-DA190 | 640.2 | 853.6 | 1067.0 | 1280.4 | 1493.8 | 1707.2 |
XM-DA210 | 798.0 | 1064.0 | 1330.0 | 1596.0 | 1862.0 | 2128.0 |
XM-DA240 | 1154.3 | 1539.0 | 1923.8 | 2308.5 | 2693.3 | 3078.0 |
XM-DA270 | 1755.0 | 2340.0 | 2924.0 | 3510.0 | 4095.0 | 4680.0 |
XM-DA300 | 2291.4 | 3055.2 | 3819.0 | 4582.8 | 5346.6 | 6110.4 |
XM-DA350 | 3426.0 | 4568.0 | 5710.0 | 6852.0 | 7994.0 | 9136.0 |
XM-DA400 | 4872.0 | 6496.0 | 8120.0 | 9744.0 | 11368.0 | 12992.0 |

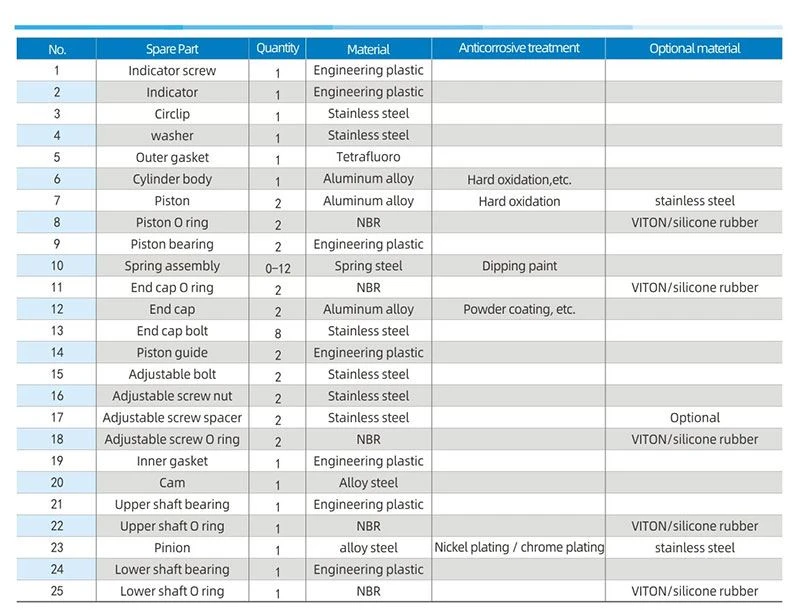

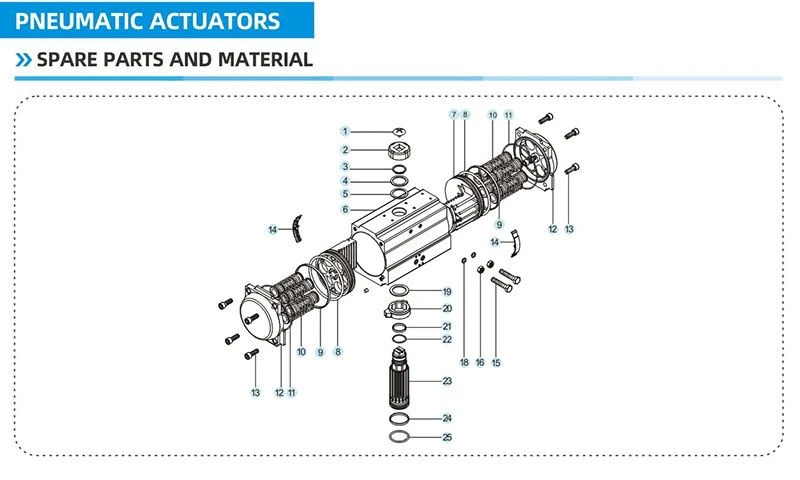

Pyès rezèv ak materyèl

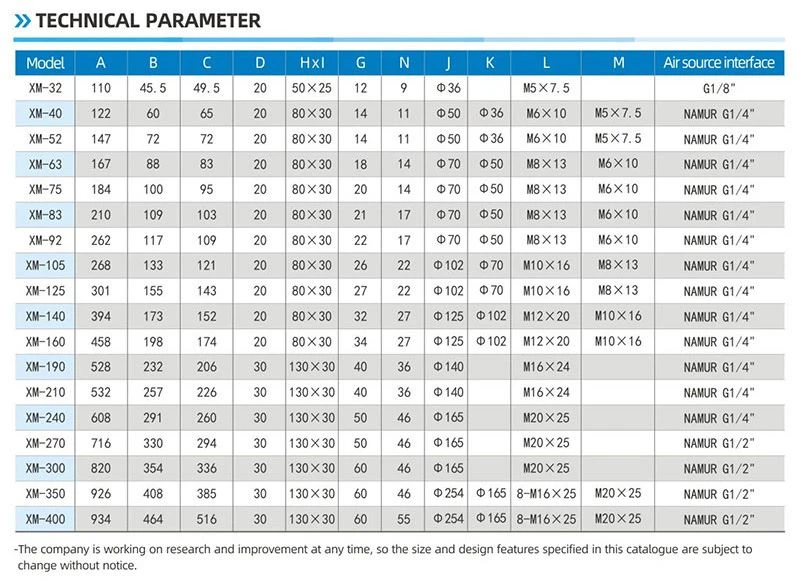

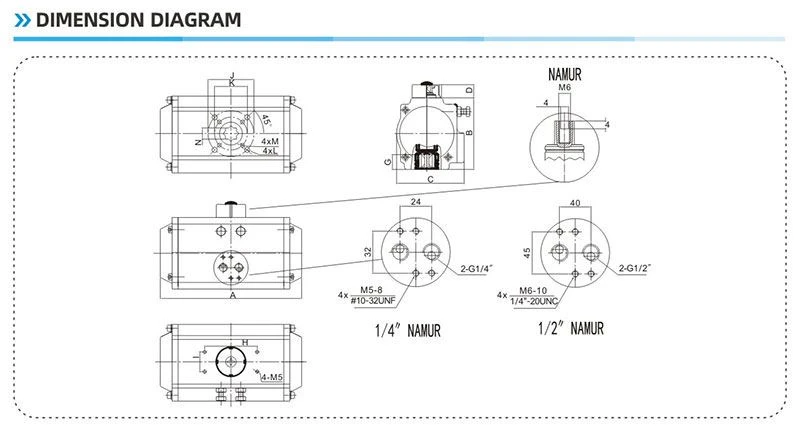

Dyagram dimansyon
Konpayi Entwodiksyon
Depi 2007, WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD te etabli.
Nou sitou fabrike Pneumatic Actuator, Pneumatic Ball Valv, Pneumatic Papiyon Valv, Pneumatic / Elektrik Valv Kontwòl, elatriye.
Konpayi nou an gen ekipman pwosesis avanse ak ekipman tès sofistike. Ekipman pwosesis nou an gen ladan tour, machin fraisage, machin raz, rabot, machin perçage, tour CNC, sant D CNC ak lòt ekipman. Genyen totalman 30 ansanm, ki genyen 5 ansanm enpòte machin vètikal sant ak plizyè ansanm avanse CNC tours.
Kapasite Pwovizyon pou:10000 inite pa mwa Pneumatic Rotary Actuator
Anbalaj ak livrezon
Anbalaj detay: 1). katon separe ak anbalaj kim andedan
2). ka plywood pou chajman lanmè
3). Plywood palèt pou chajman lè
Pò depa:Shanghai, Lachin
Tan plon:
Kantite (Inite) | 1-50 | 51-1000 | 1001-10000 | ＞10001 |
Est. Tan (jou) | Machandiz nan stock | 7 | 20 | Pou negosye |
